Automatic Material Handling Equipment

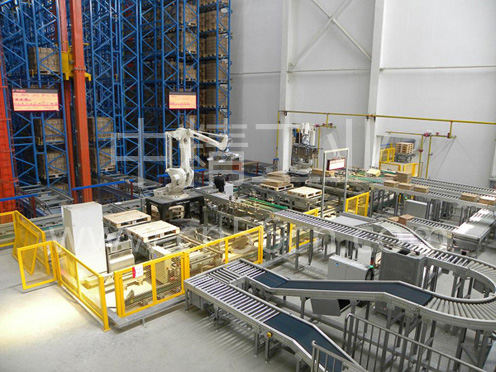

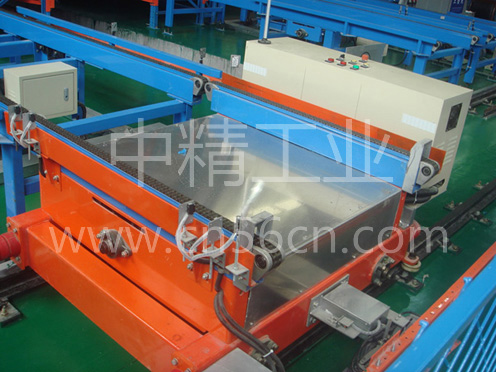

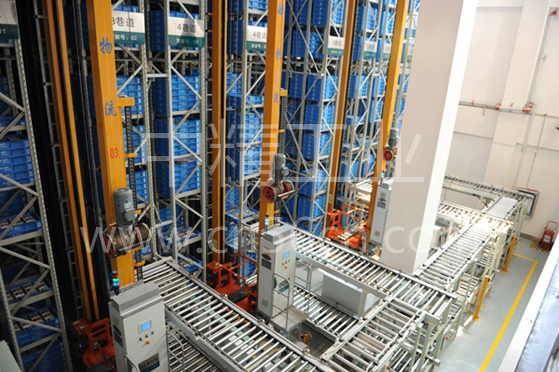

Transportation equipment including chain machine, roller machine, transfer machine, mobile car shuttle / allocated car hoist, automated warehouse library and peripherals. It is connected to the work area, walkways and bridges between the production site and storage area, and has the advantages of high degree of automation, saving time and manpower; convenient operations, improve operational efficiency. Usually stacker networking online with the host computer after Automated Storage and Retrieval System (AS / RS).
Automated conveyor system points:

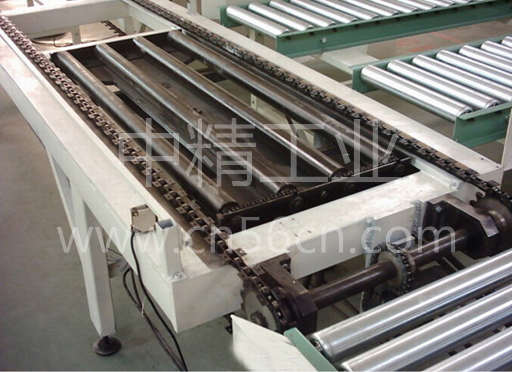

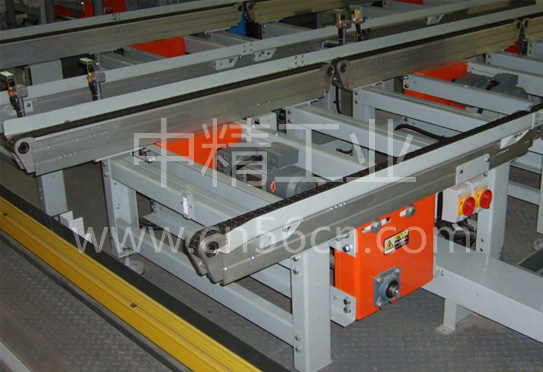

Roller conveyor system and chain conveyor system
|
Sequence |
Technical parameters |
Data / content |
|
1 |
Pallet size |
1200*1000 |
|
2 |
Rated load |
250-4000kg |
|
3 |
Conveyor speed |
0-20m/min(Frequency control) |
|
4 |
Support height |
600-700mm |
|
5 |
Drive power |
0.25-3KW |
|
6 |
Control mode |
PLC control (manual, automatic online) |
|
7 |
Means of communication |
Industrial PROFIBUS-DP network |
|
8 |
Surface Treatment |
Rack surface spray, roller surface galvanized |
